Yukon performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced heat treating to create an axle of unmatched quality and durability. Yukon high-performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced induction coil heat treating to create an axle of unmatched quality and durability.

Features:

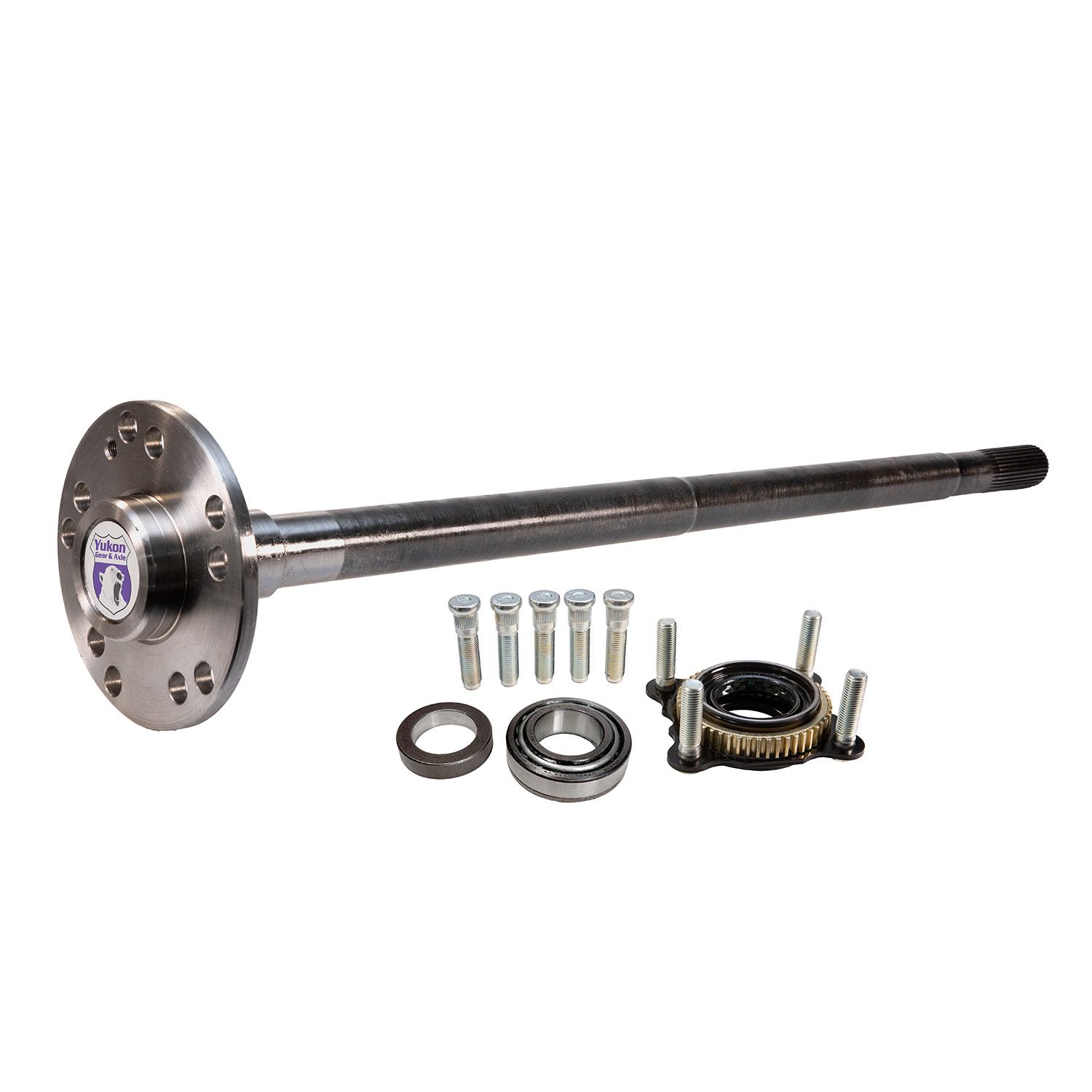

Fits Dana 44/220mm differential 32 spline Measures 33.25 inch long Right, rear axle Double drilled flange Includes axle bearing, seal, bearing retainers, wheel studs, ABS ring and dust shield

Details:

• AAP Selling Package Quantity UOM: EA
• Aap uda 12: EA
• Aap uda 22: 1
• Axle Nut Included: No
• Axle Shaft Seal Included: Yes
• Axle Type: Semi-Floating
• Brake Hardware Included: No
• CV Joints Included: No
• Inboard Spline Quantity: 32
• Rust Resistant Coating: No
• Shaft Length: 33.25 Inch
• Shaft Material: 4340 Nickel Chromoly Steel

Not Common in USA ( Fits International Applications).

• Fits with Axle Code DRE = Narrow Track M220
• And with DSE = E-Locker Rear Axle
• Right Hand= 33.2 inch Long Axle
• Small Bearing (Set10) Axle = 1.562 inch ID / 2.875 inch OD Bearing Categories

Fitment Notes:

• Dana 44/ 220mm
• JL Rubicon Narrow Track (Axle Code DRE), with DSE Tru-Lok
• 4340 Chromoly
• Right Hand Axle Kit
• 32 Spline
• 33.25 inch. Long

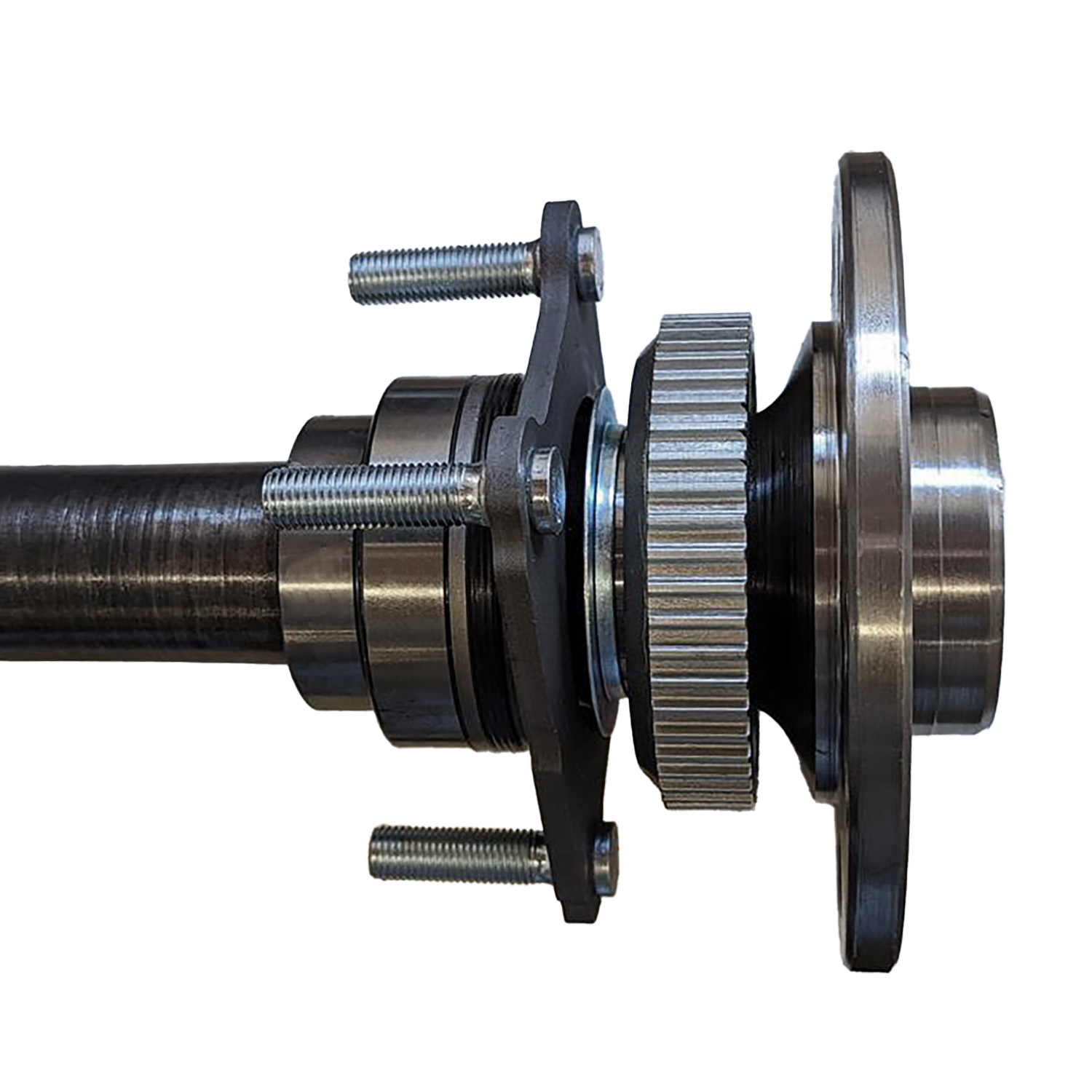

• Includes Set10 Axle Bearing, Seal, Retainer, Studs, and ABS Ring (1 Side)
