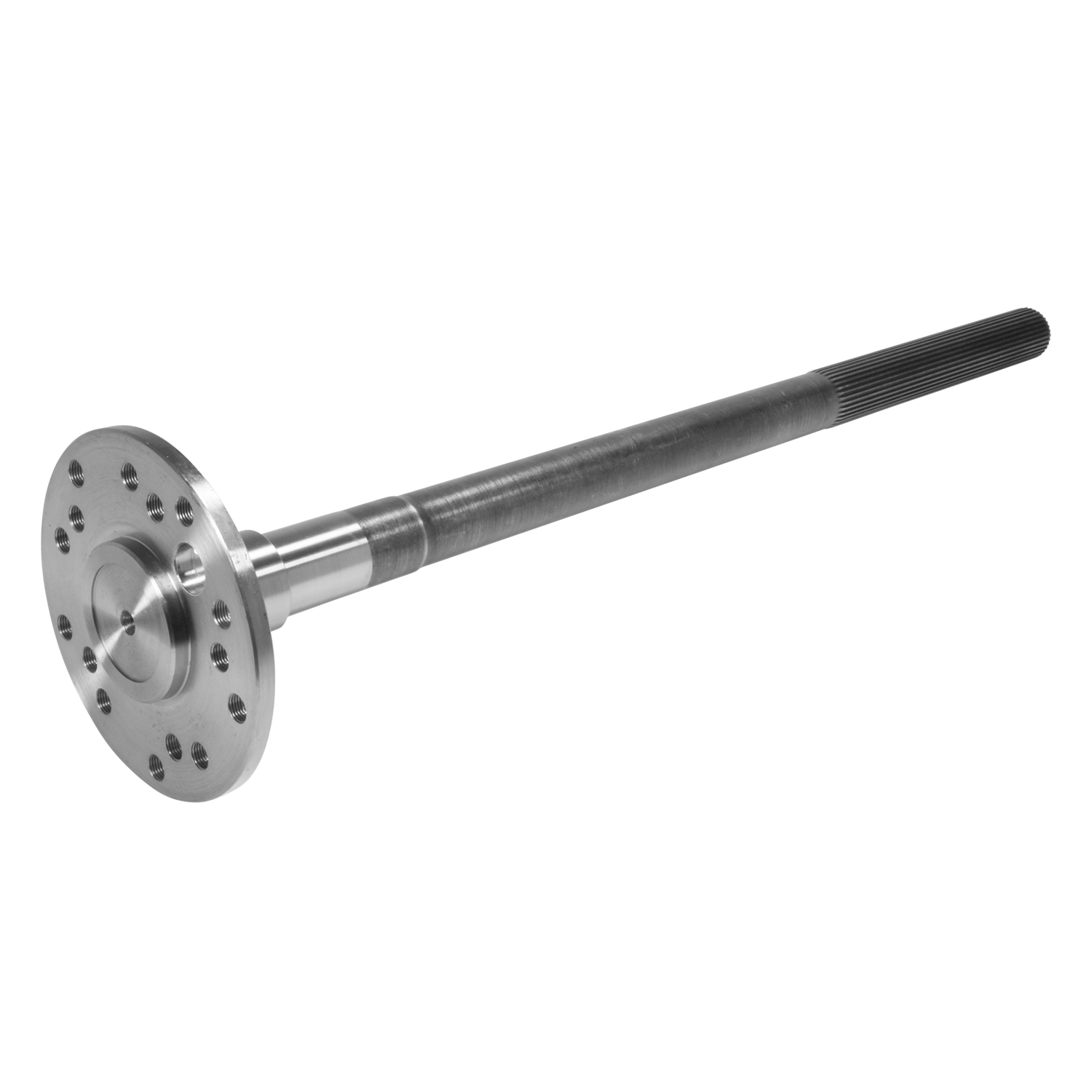

Yukon performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced heat treating to create an axle of unmatched quality and durability. Yukon high-performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced induction coil heat treating to create an axle of unmatched quality and durability.

Features:

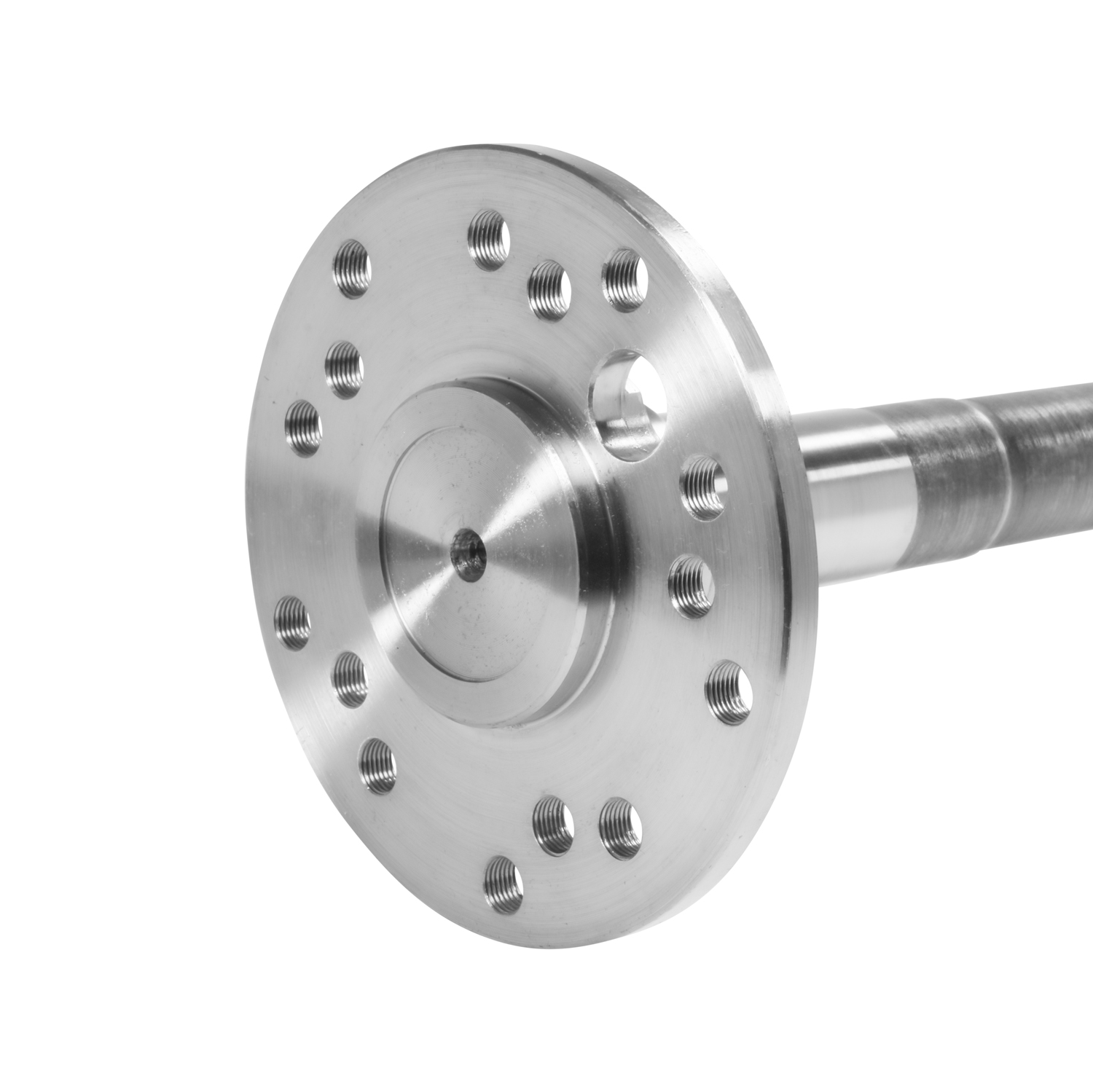

Fits Ford 8.8 differential 35 spline Axle measures 29.5 Can be cut down for 21.0 inch to 29.5 inch long applications Triple drilled for 5x4.5, 5x 5 inch, and 5x5.5 bolt patterns Threaded 1/2-20 holes for screw in studs

Details:

• AAP Selling Package Quantity UOM: EA
• Aap uda 12: EA
• Aap uda 22: 1
• Bolt Circle Diameter: 5x4.5 / 5x5.0 / 5x5.5
• Inboard Spline Quantity: 35
• Shaft Length: 29 Inch
• Shaft Material: 4340 Nickel Chromoly Steel
• Spline Length: 10

1.564 inch Bearing Journal Diameter 6.5 inch Flange Diameter 2.795 inch Pilot Diameter.
