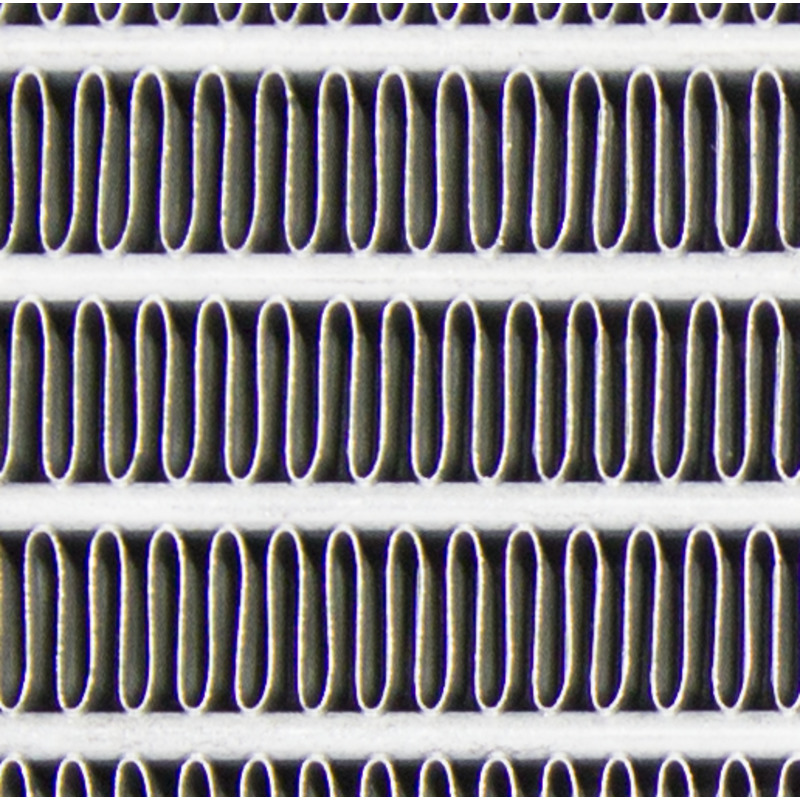

Coolers, providing 22 percent more cooling over other designs. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling.

Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control.

This combination gives BD's Xtruded Transmission Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW! Xtruded Transmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation - no wasting time fabricating brackets out of scrap metal.

The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look.

Details:

• Series: Xtrude
• Ems Code: 4
• Engine Years: Universal
• Installation Time: 3.5 Hours
• Fits: 1996-1999 K1500/ C1500 Suburban 1996-1999 Chevy Tahoe
• Shipping Restriction: This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states
• Sold As: Kit
• Warranty: 12-Months/24,000 Miles
