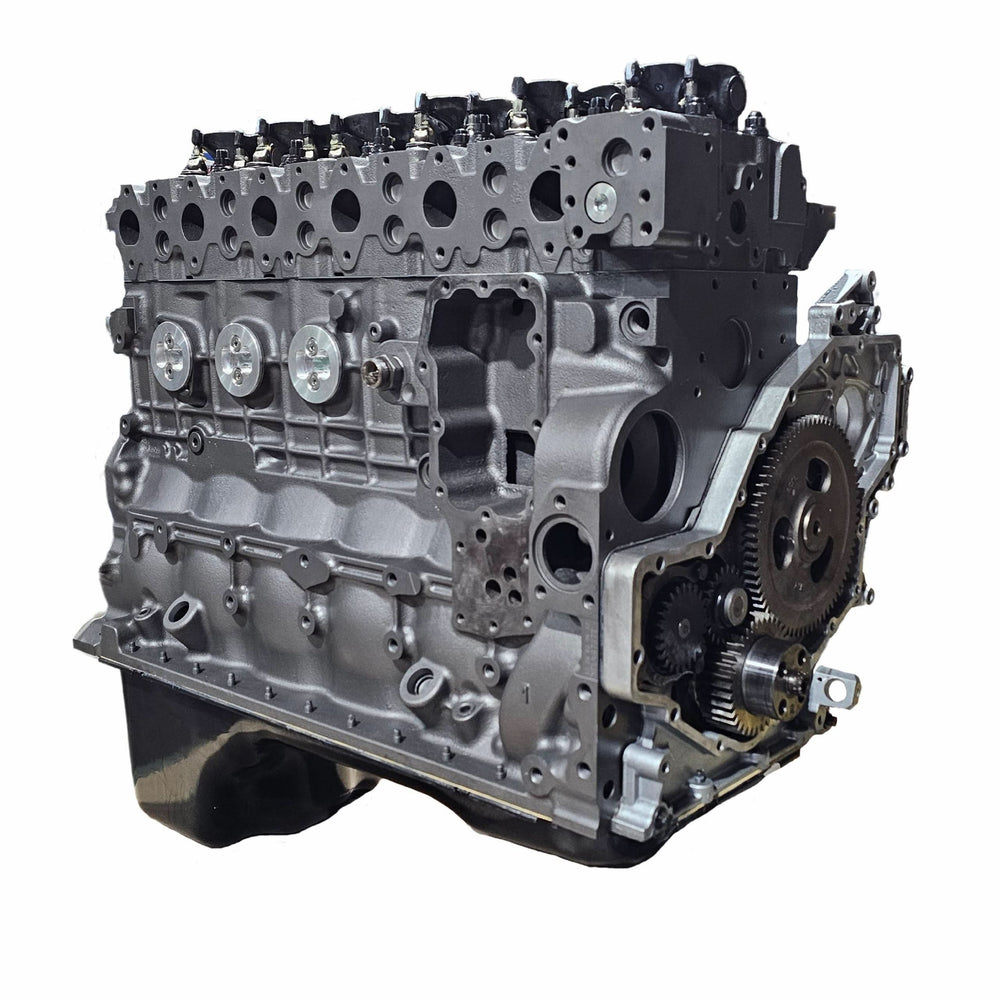

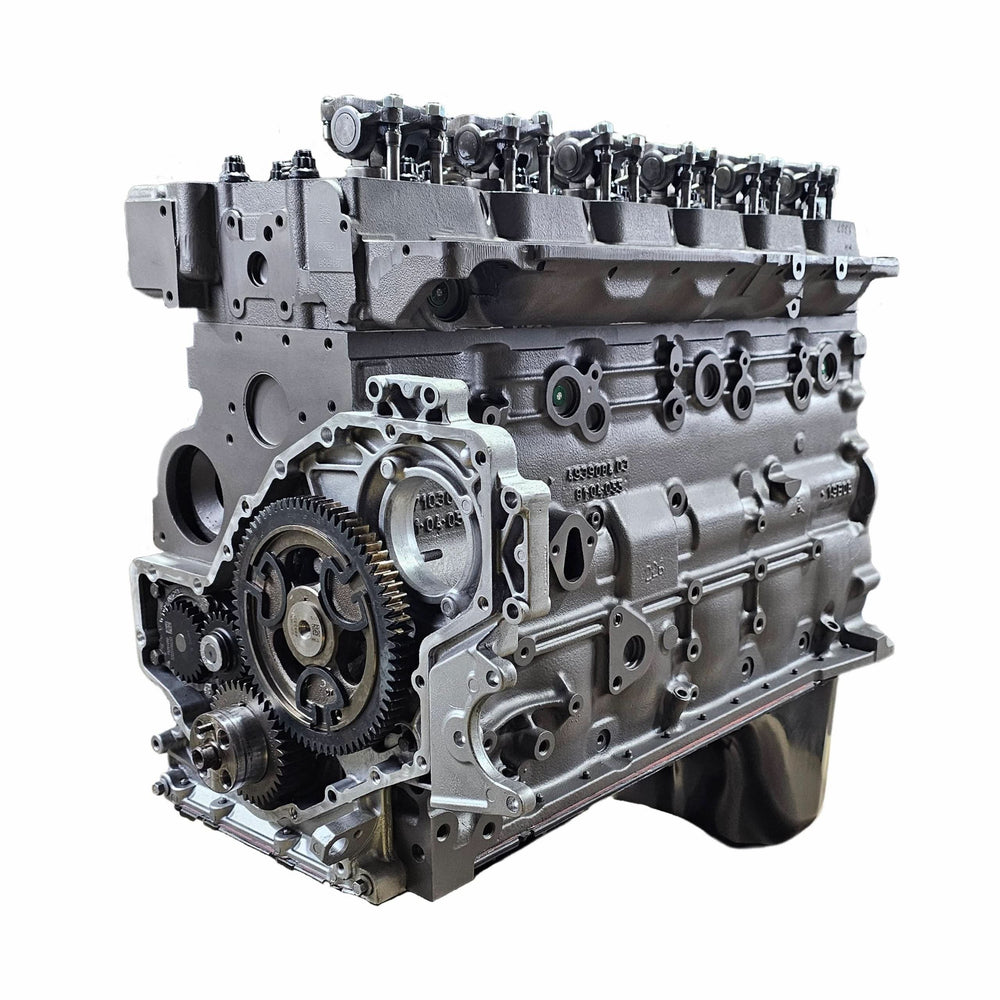

6.7L Cummins Long Block Daily Driver Engine Cummins Diesel 2007.5-2018 Dodge/Ram Cummins Diesel Engine

Choate Part Number: CEP67CLDD

This 6.7L Cummins 2007.5-2018 Reman Diesel Engine Includes:

• Choate Billet Freeze Plugs
• Oversized New Upgraded Valve Seats
• Blow Proof Threaded Soft Plugs in Cylinder Head
• New Oil Pump
• All New Iron Matrix Valve Guides
• Install New Valve Seals
• Test Spring Tension
• New Oversized Seats
• Head Studs
• Full CNC blue print machining, (bore, deck, hone and line honed). The Cylinder bores are blue print bored to a true 90 degrees from the crankshaft center line, prior to being diamond honed to within .0002 inch for precise piston to cylinder bore clearances.
• The main housing is honed to precisely align the crankshaft in the engine block. The Cylinder walls are bored 90 degrees over the crankshaft center line. The piston diameter measured to the nearest .0001 inch matched to cylinder bores.
• Balanced and Matched Rotational Assembly
• New upgraded Pistons
• New pistons rings
• New Pin retainers
• New OE tappets
• Crankshaft is Polished and ground to .0005 concentricity or less
• New Rod bearings
• New Main Bearings
• New Cam Bearing
• Install Rear Main Seal
• Install New Rear Cover Gasket
• Install Lower Oil Pan Gaskets
• Install Pickup Tube O-ring
• Rear Cover Installed
• 5 Year/100K Mile Warranty
